Description
Solar Cable 6mm Red 25m Roll

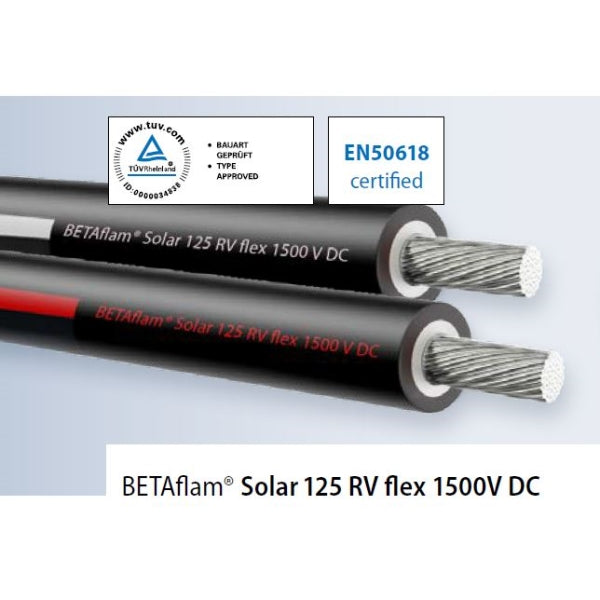

BETAflam® Solar 125 RV+ flex 1500V DC
Photovoltaic power cables, halogen free, flame retardant
Applications
Used as photovoltaic cable between solar modules and inverters
in a photovoltaic system with a rated value U0 = 1.5 kV DC.
Advantages
- EN50618 approval
- Electron-beam cross-linked
compounds - UV, ozone and hydrolysis
resistant - High temperature resistance,
the materials do not melt or flow - Good cold flexibility
- Very long service life
>25 years at 90 °C - Compatible to all popular
connectors
Construction
- Conductor: Tinned fine copper strand according
to VDE 0295 / IEC 60228, Class 5 - Insulation: XLPO, flame-retardant, halogen free,
electron-beam cross-linked
- Jacket: XLPO, flame-retardant, halogen free,
electron-beam cross-linked,
UV and ozone resistant,
with white or red marking and stripe
- Jacket colour: Black
Electrical characteristics
- Rated value: U0 = 1500 V DC
(max. permitted voltage U0 1800 V DC) - Test voltage: 6.5 kV AC 50 Hz
Thermal characteristics
- Operating temperature: –50 °C up to +120 °C
- Ambient temperature: –50 °C up to +90 °C
- Max. short circuit temp.: +280 °C, +536 °F / 5 s
Bending radius
- Fixed installation: > 4 ×
- Occasionally moved: > 5 ×
Standards / Material properties
- Fire performance: IEC 60332-1
- Smoke emission: IEC 61034; EN 61034-2
- Low fire load: DIN 51900
- Approvals: EN50618; H1Z2Z2-K
Fire properties according to the CPR
- Dca-s2, d2, a2, EN 50575, EN 13501-6
- Fire performance Dca: EN 50399
- Low corr. of the combustion gases: EN 60754-2 – halogen free a2
- Medium smoke density s2: EN 50399
- Flaming droplets d2: EN 50399
- No flame propagation: EN 60332-1-2
- RoHS-compliant material selection
