Description

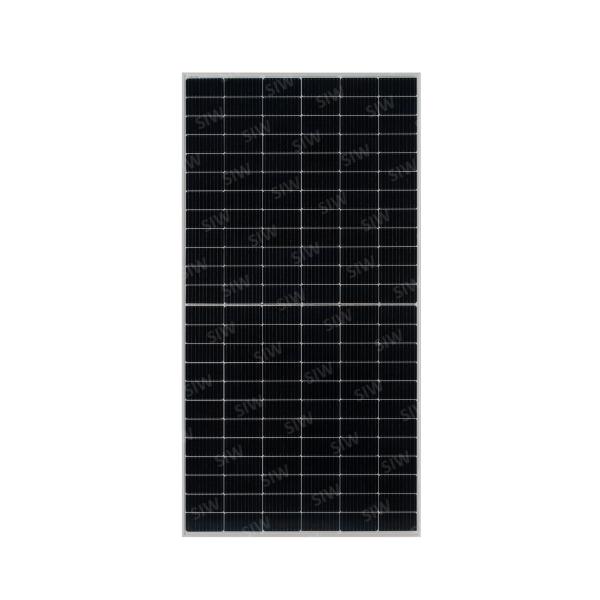

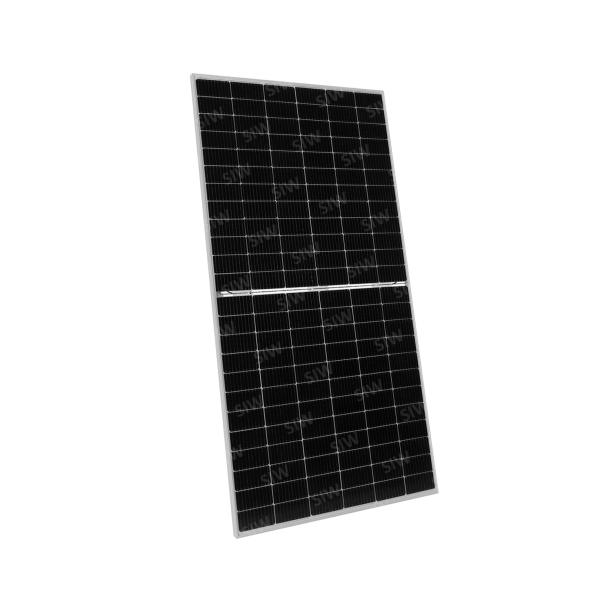

Jinko Solar Panel NEO N-Type 620W Mono-Facial JKM620 N-78HL4
The Jinko 620W NEO N-Type Mono Facial solar panel is a 620W monocrystalline module with 156 cells from Jinko Solar, one of the world's leading manufacturers of the photovoltaic industry. Jinko solar panels come with a 12-year product warranty and a 30-year linear power warranty.
Tiger 620W Mono-Facial
- Electrical Data | STC*
- Nominal Max. Power (Pmax): 620W
- Opt. Operating Voltage (Vmp): 45.79V
- Opt. Operating Current (Imp): 13.54A
- Open Circuit Voltage (Voc): 55.55V
- Short Circuit Current (Isc): 14.25A
- Module Efficiency up to: 22.18%
- Cell Type: N type Mono-crystalline
- No. of cells: 156 (2×78)
- Dimensions: 2465×1134×35mm (97.05×44.65×1.38 inch)
- Weight: 30.6 kg (67.46 lbs)
- Front Glass: 3.2 ,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy
- Junction Box: IP68 Rated
IEC61215(2016), IEC61730(2016)
ISO9001:2015: Quality Management System
ISO14001:2015: Environment Management System
ISO45001:2018: Occupational health and safety management systems
