Description

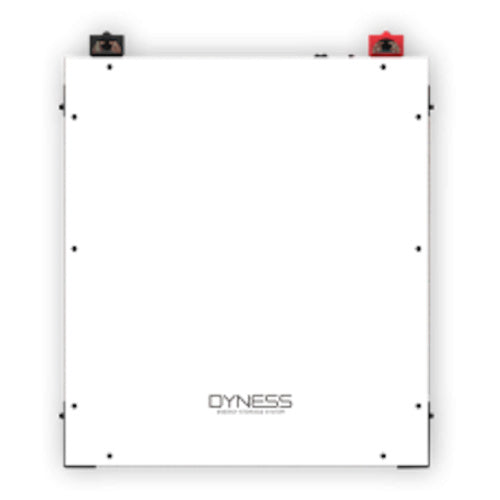

Dyness DL5.0C Battery adopts economic design, and is tailor-made for residential & light commercial. This LFP battery module supports remote update and APP monitoring and provides multiple installation options- wall mounted, floor-standing and stack, it is scalable from 5.12-256kWh (max, 50 modules in parallel), providing various energy storage options to meet different requirements.
Features and Advantages
APP Monitoring (Optional)
Real-time monitoring
Remote upgrade available
Modular Design
Flexible expansion
Wide compatibility
Matching with leading inverter brands
Various Mounting Methods
Wall-mounted, floor-standing and stack
High Safety LFP
Cell level monitoring and balancing
Model: DL5.0C
Battery Type LiFePO4
Nominal Battery Energy 5.12kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Operating Voltage 44.8-57.6V
Recommended C Rate 0.5C
Recommended Charge/Discharge Current 50A
Max. Power Charge Current 75A
Max. Power Discharge Current 100A
Peak Power Charge/Discharge Current 110A(15s)
Depth of Discharge 90%
Net Weight 54kg
Dimension[W*D*H] 558*545*150mm
Charging Temp. Range 0-55°C
Discharging Temp, Range -20-55°C
Communication CAN/RS485/RS232
Cycle Life!" 26000 Cycles
Estimated Protection Level IP20
Expansion Up to 50 units in parallel
Pros Can be used in both off-grid and hybrid setups, compact design
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021
Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow etc.
